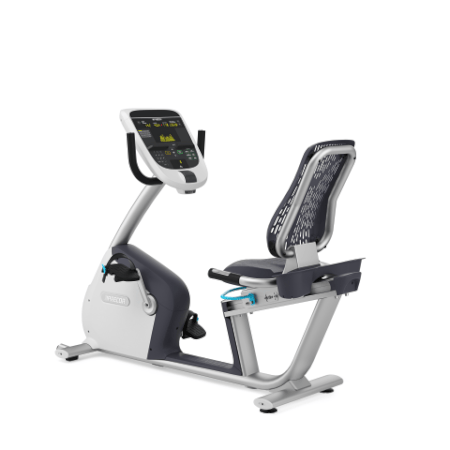

The RBK 835 recumbent bike features our 830 Line console and a step-through design to appeal to a wide range of exercisers of all ages. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike. A ventilated air flex seat provides exceptional comfort.
Equipment Features
Covers
Shrouds are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Cable ManagementOptionalAccessories Holder(s)YesTransport WheelsIntegratedBiomechanics
To achieve proper pedaling biomechanics, Precor designed the recumbent bike to maintain similar biomechanics as used on their upright bike. That means setting the angle of the seat rail with an offset from the crank to aide with efficient pedaling and reduced shear force on the knee. The seat rail angle is at 15 degrees with a slight offset from the crank axle. This places the knee directly over the ball of the foot (or pedal spindle) when the pedals are in the 2 and 8 o'clock position.
Frame
Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Seat
The air flex seat back features a "floating" suspension system that allows the seat back to move with the user for unsurpassed comfort. The ergonomic curved design and ample ventilation further enhance user comfort. And the polypropylene material is virtually indestructible.
Bearings
The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.
Seat Adjustment
The simple, convenient seat adjustment allows the user to easily change the seat to their desired height, with one hand either on or off the bike.
Handlebars
The console handlebars help with entry and exit, while the riding handle bars provide optional hand and arm positioning and heart rate monitoring.
Pedals
For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user's knee.
Step-Through Design
The RBK 835 recumbent bike features a step-through design (14 in / 36 cm wide) with a very low step-over height (4 in / 10 cm).
Ergonomics
The riding cockpit is designed with sound ergonomics. The seat pads are angled for optimal comfort, maximum low back support, and minimal interference with the movement of the user's legs. The console is mounted at an optimal viewing angle, with the machine controls within easy reach.
Resistance System
Minimum Watts18 watts (level 1 at 20 RPM)Maximum Watts750 watts (level 25 at 150 RPM)Resistance Levels253-Piece Crank
3-piece crank tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
Drive System
The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems.
3-Phase Generator
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive
Belt drive for smoother, quieter operation and reduced maintenance.
Power Requirements
| Equipment | Self-Powered |
| International 240 VAC |
Applicable country-specific power cord |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply |
Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
Console Features
| Electronic Readouts | 18 Readouts Resistance Level Distance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed % Complete, Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR |
| Numeric Keypad | Yes |
| Motion Controls | Yes |
| QuickStartTM | Yes |
| Tactile Dome Keys | Yes |
| Units Selection | Metric or U.S. Standard |
| Console Language(s) | Dutch, English, French, German, Italian, Romanized Russian, Spanish, Japanese |
| Maximum Pause Time (Pause) | 30 seconds |
| Maximum Workout Time | unlimited |
| Preset Programs | 12 programs accessed by 6 keys: Manual Variety Cross Country Random Custom Resistance Weight Loss Interval 1:1 1:2 1:3 Heart Rate Control Basic HRC Performance Fitness Test Hill Climb Watts Control |
| Console Type | Advanced LED Display |
Heart Rate Monitoring
| Touch |
Yes. Touch heart rate sensors located conveniently on handlebars next to seat. |
| Telemetry |
Yes. Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap. |
| Heart Rate Sensor Advisory |
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Network Capabilities
| Diagnostics |
Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
| CSAFE Ready | Yes |
Equipment Dimensions and Weight
| Height with PVS | 63 inches / 160 cm |
| Length | 67 inches / 170 cm |
| Width | 23 inches / 58 cm |
| Equipment Weight | 210 lbs / 95 kg |
| Height | 50 inches / 127 cm |
Shipping Dimensions and Weight
| Length | 75 inches / 190 cm |
| Width | 28 inches / 71 cm |
| Height | 57 inches / 145 cm |
| Shipping Weight | 219 lbs / 100 kg |
Equipment Specifications
| Maximum User Weight | 350 lbs / 159 kg |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Integrated |
| Personal Viewing System (PVS) | Optional |
| Personal Viewing Screen (PVS) (Specification) | 15.6 inch / 39.6 cm screen |
| Entertainment Cap / Wireless Receiver | Optional |
