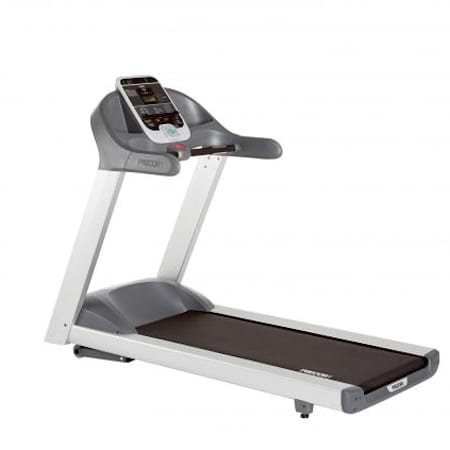

The 932i is a durable, low-impact treadmill and includes the essential features members need in an affordable package. Equipped with Integrated Footplant Technology™ (IFT) and Ground Effects® (GFX), users are ensured a dynamic and rewarding workout. The 932i treadmill is a cost effective option for a broad range of environments such as corporate gyms, apartment complexes and fire departments.
Equipment Features
Cable ManagementOptionalEmergency Stop
Yes. Safety clip attached to emergency stop switch to immediately turn off power, bringing treadmill to a gentle stop. Stop switch has no magnet to lose and has a guard to prevent inadvertent activation.
Accessories Holder(s)YesTransport WheelsYesReversible DeckYesFrame
Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Rollers
Steel tapered rollers keep the belt centered to reduce maintenance and noise.
Ground Effects® Impact Control System
Yes. Ground Effects® impact control system helps decrease impact on joints and reduces lateral motion.
Integrated Footplant TechnologyTM
Integrated Footplant TechnologyTM makes each step feel more natural, balanced and in control.
Deck and Belt
Deck is a one-inch Slik-Dek bed with a thin layer of wax to assist in the break-in of the new belt / deck system. The deck is composed of 52 lb high-density fiberboard core with phenolic laminate bonded on both sides. Can be flipped to double life. Deck and belt require no external lubrication. Rear-deck hinges and front cushioning create a laterally stable platform, reducing shock to the user and providing firm push off.
Elevation System
Updated elevation system generates up to 1000 lbs of thrust and operates in compression for reliable operation.
Motor
IFT-Drive controller works with a new, high efficiency 4 HP AC motor that delivers improved performance, reliability and efficiency. 3-phase, sensorless variable frequency drive technology for high reliability and accurate speed control.
Console Features
Electronic Readouts
Speed
Incline
Time Remaining, Time Elapsed
Pace, Distance, Average Speed
Calories
Heart Rate
Numeric KeypadYesQuickStartTMYesTactile Dome KeysYesUnits SelectionMetric or U.S. StandardConsole Language(s)
English, Dutch, German, Spanish, French, Portuguese, Italian, Romanized Russian
Maximum Pause Time (Pause)120 secondsMaximum Workout Time240 minutesPreset Programs
7 programs accessed by 6 workout keys:
Manual
Heart Rate
Basic HRC
Interval
Custom Interval
Weight Loss
Variety
Random
Performance
Track
Gerkin Fitness Test
Console TypeStreamlined / Advanced LED Display
Heart Rate Monitoring
| Touch |
Touch heart rate sensors located conveniently on handlebars. |
| Telemetry |
Equipped for heart rate telemetry reading using a chest strap. |
| Heart Rate Sensor Advisory |
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Network Capabilities
| Diagnostics |
Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
| CSAFE Ready | Yes |
Equipment Specifications
| Power Cord Management |
Power cord management system includes pre-drilled holes underneath the frame siderails and snap-in cord clips. |
| Motor |
Improved IFT-Drive controller works with a 4 HP AC induction motor for a smooth, natural feel. 3-phase, sensorless variable frequency drive technology for high reliability and accurate speed control. |
| Handrail Length (inches / cm) | 11.5 inches / 29.2 cm |
| Roller Diameter (inches / cm) | 2.5 inches / 6.4 cm |
| Maximum User Weight | 400 lbs / 182 kg |
| Step-up Height | 7.5 inches / 19 cm |
| Speed Range | 1-12 mph / 1-20 km/h |
| Decline / Incline Range | 0% - 15% in 0.5% increments |
| Running Surface (L X W) | 22 X 56 inches / 56 X 142 cm |
Equipment Dimensions and Weight
| Height with PVS | 73 inches / 186 cm |
| Length | 79 inches / 204 cm |
| Width | 34 inches / 86 cm |
| Equipment Weight | 331 lbs / 150 kg |
| Height | 59 inches / 150 cm |
Shipping Dimensions and Weight
| Length | 82 inches / 208 cm |
| Width | 35 inches / 89 cm |
| Height | 17 inches / 43 cm |
| Shipping Weight | 378 lbs / 171 kg |
Power Requirements
| Equipment | Powered |
| International 240 VAC |
IEC 320-C19 inlet supporting applicable country-specific power cord |
| U.S. & Canada 240 VAC | Dedicated 240V/20A circuit with 6-20R NEMA receptacle |
| U.S. & Canada 120 VAC | Dedicated 120V/20A circuit with 5-20R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
| Cord Length | 12 ft / 3.7 m |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Integrated |
| Personal Viewing System (PVS) | Optional |
| Personal Viewing Screen (PVS) (Specification) | 15in. Screen |
| Entertainment Cap / Wireless Receiver | Optional |
