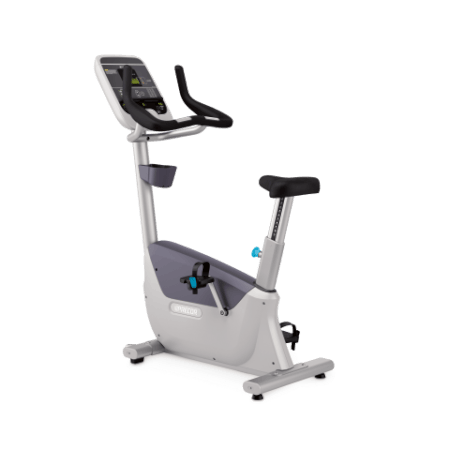

The new, self-powered UBK 615 upright bike features custom-designed handlebars with integrated handheld heart rate for maximum comfort and efficient workout experience. Easy seat adjustment, redesigned saddle for riding comfort, and improved knee over pedal spindle (KOPS) geometry for efficient pedaling mean a smooth, comfortable workout.
Equipment Features
Cable ManagementOptionalCovers
Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Accessories Holder(s)YesTransport WheelsIntegratedUniversal Seat MountNoFrame
Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Bearings
Pedal axles and bearings are designed for smooth operation and exceptional service life.
Seat
Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort.
Seat Adjustment
Familiar pop-pin seat adjustment allows the user to easily change the seat to their desired height.
Handlebars
Over-molded handlebar design offer the user three comfortable riding positions: upright, cruising and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the user in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the user's hands. Touch heart rate is integrated in the upright position.
Pedals
Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.
Biomechanics
To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
Resistance System
Minimum Watts22 (level 1 at 20 RPM)Maximum Watts500 (level 25 at 150 RPM)Resistance Levels253-Piece Crank
3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
Drive System
The single stage drive system is designed to yield smooth, quiet operation and a a consistent resistance progression.
3-Phase Generator
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive
Belt drive for smoother, quieter operation and reduced maintenance.
Power Requirements
| Equipment | Self-Powered |
| International 240 VAC |
N/A |
| U.S. & Canada 120 VAC | N/A |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply |
Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
Console Features
| Electronic Readouts |
9 Readouts |
| Numeric Keypad | Yes |
| QuickStartTM | Yes |
| Tactile Dome Keys | Yes |
| Units Selection | Metric or U.S. Standard |
| Console Language(s) |
English, Dutch, German, Spanish, French, Portuguese, Italian, Romanized Russian |
| Maximum Pause Time (Pause) | 30 seconds |
| Maximum Workout Time | unlimited |
| Preset Programs |
6 programs accessed by 6 workout keys: |
| Console Type | Stream-lined LED display |
Heart Rate Monitoring
| Touch |
Yes. |
| Telemetry |
Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap. |
| Heart Rate Sensor Advisory |
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Network Capabilities
| Diagnostics |
Ability to set club parameters, e.g. limit exercise time, set default language and pause time. |
| CSAFE Ready | Yes |
Equipment Dimensions and Weight
| Height with PVS | 70 inches / 178 cm |
| Length | 46 inches / 117 cm |
| Width | 21 inches / 53 cm |
| Equipment Weight | 155 lbs / 70 kg |
| Height | 57 inches / 146 cm |
Shipping Dimensions and Weight
| Length | 47 inches / 118.5 cm |
| Width | 22 inches / 57 cm |
| Height | 31.5 inches / 80 cm |
| Shipping Weight | 173 lbs / 79 kg |
Warranty
| Frame |
Equipment Specifications
| User Height Range | 58 - 78 / 147 - 198 |
| Maximum User Weight | 350 lbs / 159 kg |
| Crank Width | 19 |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Integrated |
| Personal Viewing System (PVS) | Optional |
| Personal Viewing Screen (PVS) (Specification) | 15.6 inch/ 39.6 cm screen |
| Entertainment Cap / Wireless Receiver | Optional |
